Compatible with these tractors: 430 Max | 235 | 525 | 415 | 230 | UM 428

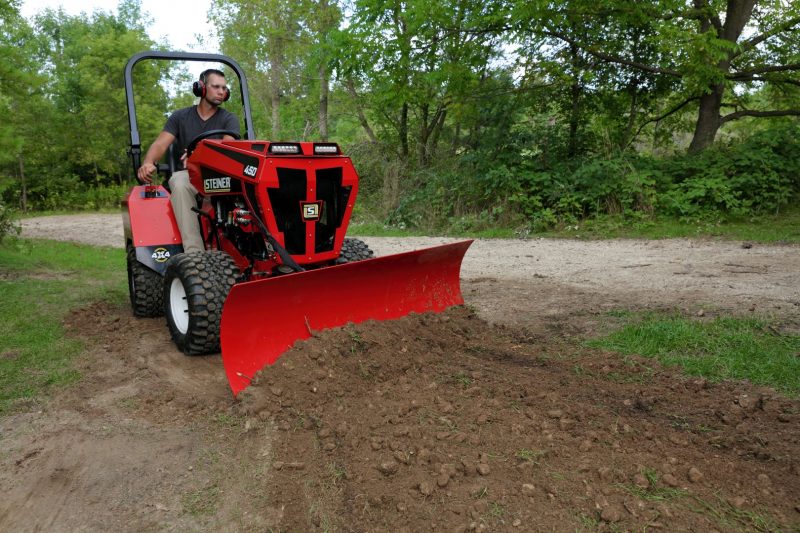

Move dirt or snow with rugged a 60″ blade. Features hydraulic power angle and safety trip protection. Reversible cutting edge adds longer life. Comes complete with adjustable skid shoes. The optional scarifier wear edge teeth can loosen hard or packed material for removal or grading.
Length: 32″
Width: 48″, 60″ & 72″ available
Height: 19″
Weight: 160/185 lbs
Blade height from cutting edge – 19″
Hydraulic Angling – 30° left and right
Skid shoe – Adjustable
Forward tilt – Spring-loaded
Reversible cutting edge – 3″ hardened
Ground clearance – 14″ on Model 430 Max
Scarifier teeth – 3/8″ x 4″ through hardened steel
Scarifier pitch – 2″ sawtooth edge
Optional caster wheel kit replaces skid shoes
Optional 3/4″ x 4″ heavy-duty cutting edge
Blade, Dozer 60″ with Power Angle Hitch
