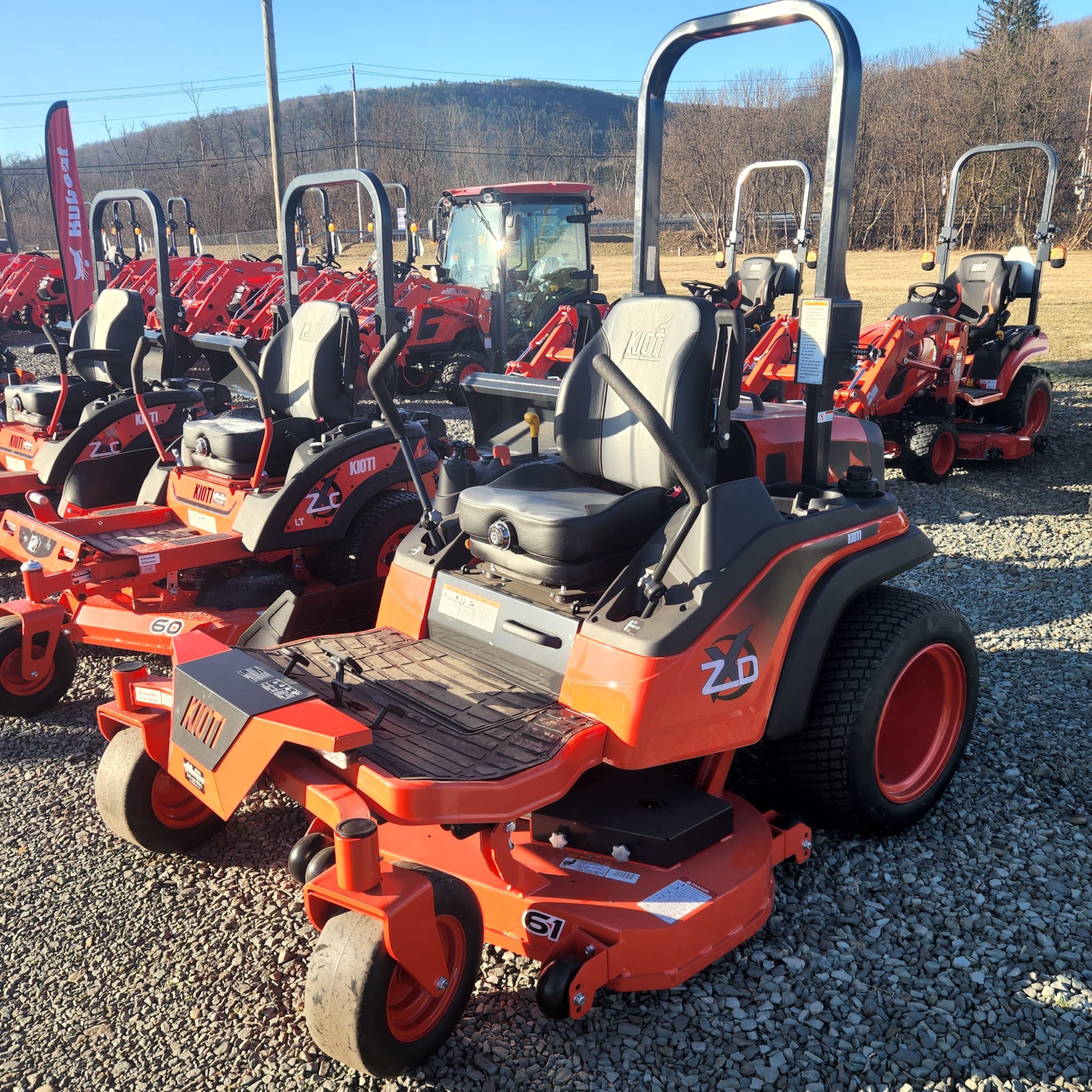

Model: ZXD61
Engine
Type: KIOTI 1.2L 3 Cyl Diesel
Engine Gross hp (kW): 24.5 (18.3)
Displacement cu. in. (cc): 72.2 (1,233)
Fuel Tank Capacity gal. (l ): 17.1 (65)
Fuel Requirement: Diesel
Drive Train
Model: KIOTI 2HST
Displacement (Pump/Motor) cc: 23cc/23cc 11cc charge pump
Clutch ft./lb.: Independent Wet Disc
Tire Size
Front: 15×6.5-8 Semi-Pneumatic
Rear: 26×12-16 Turf Tire
Traveling Speeds
Forward mph (km/h): 11 (17.7)
Reverse mph (km/h): 7.1 (11.5)
Parking Brake: Foot Pedal
Dimensions
Overall Length in. (mm): 88.9 (2,258)
Overall Width in. (mm): 59.6 (1,515)
Overall Height in. (mm): 82.4 (2,092)
Wheelbase in. (mm): 56.7 (1,441)
Width (Tire to Tire) in. (mm): 59.6 (1,515)
Approximate Curb Weight lb. (kg): 1,929 (875)
Mower Deck
Mower Deck Type: Fabricated
Lift Mechanism: Pedal Operated Hydraulic
Deck Steel Thickness: 7-gauge
Anti-Scalp Ball Rollers: 6 (4 front, 2 rear)
Cutting Width of Mower in. (mm): 61 (1,550)
Blades: Notched
Cutting Height in. (mm): 1-5 (25-127)
Discharge Chute: Side (Durable Plastic)
Deck Height Adjustment: 1/4″ by Dial
Seat
Suspension: Standard (1.5 Inch Suspension)
Sliding Adjustment: Standard
Arm Rest: Standard
Seat Belt: Standard
Foldable ROPS: Standard
Head Light: Standard
Power Socket: Standard
