Kioti - ZXC48, ZXC54, ZXC60
Kioti - ZXC48, ZXC54, ZXC60

Kioti – ZXC48, ZXC54, ZXC60

Call for price

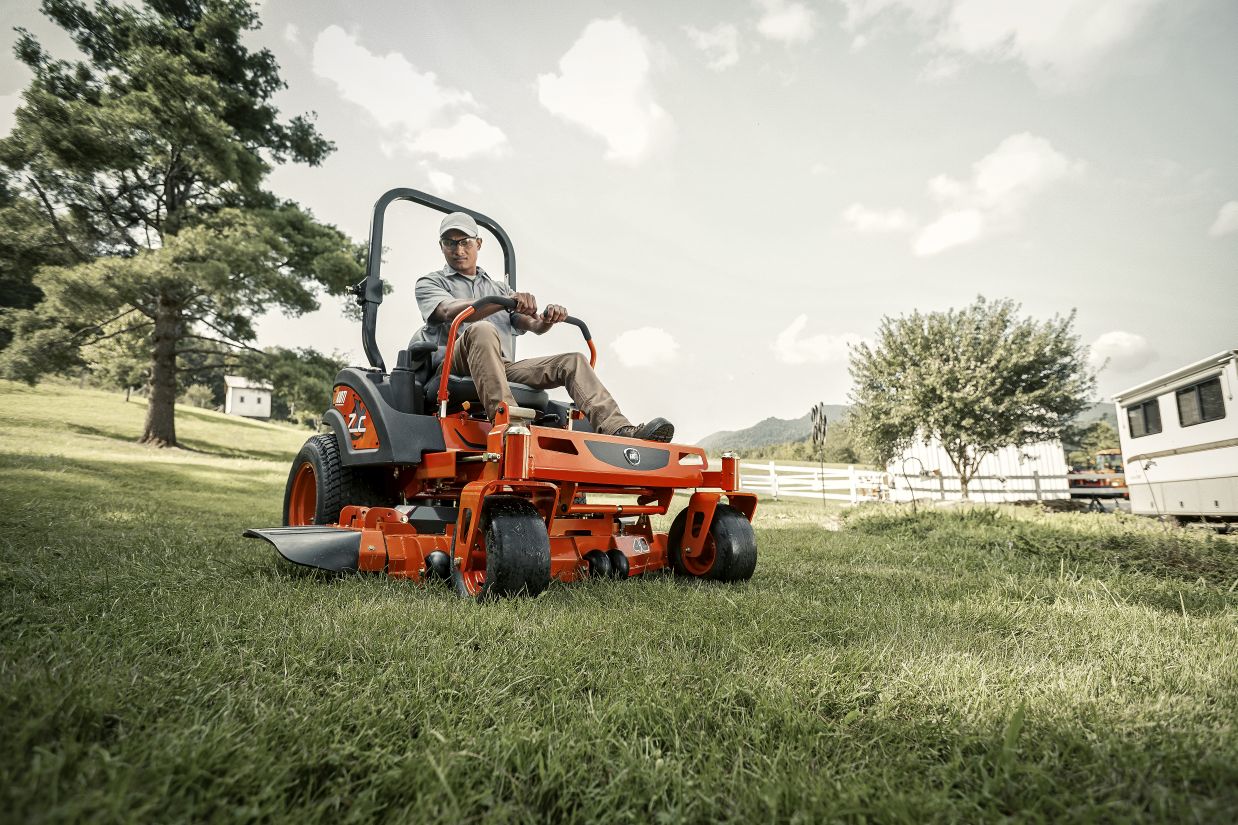

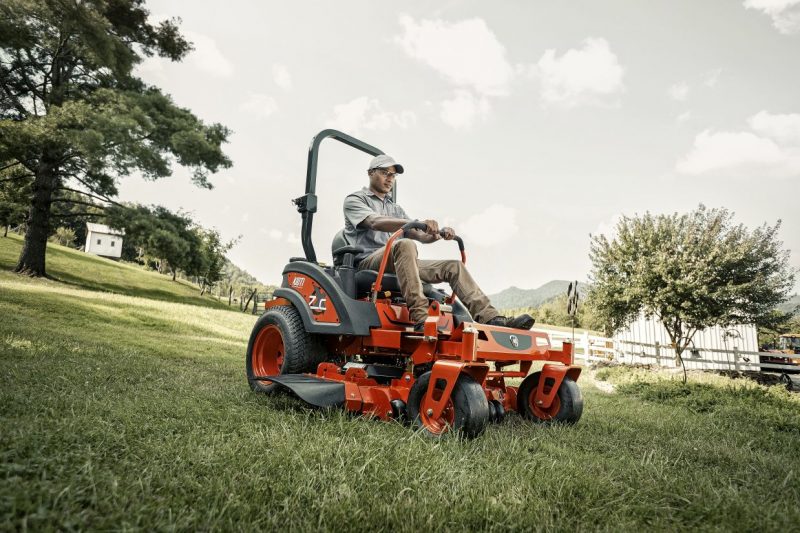

The ZXC Series was designed for commercial applications with professionals in mind. With a Briggs & Stratton Commercial Series™ engine combined with a Hydro-Gear® transmission, the ZXC delivers reliable and hardworking performance. Owners can choose from a 48, 54 or 60 in mower deck, each with a fabricated, reinforced 10-gauge steel deck and standard notch blades that cut through the toughest turf. The large 12.5-gallon fuel capacity saves time for the operator who spends a significant amount of time mowing.

Categories: , Tags: , ,

ZXC48

Model: ZXC48

Engine

Type: Briggs & Stratton Professional Series™
Engine Gross hp (kW): 23 (17.15)
Displacement cu. in. (cc): 44.18 (724)
Choke: Manual
Fuel Tank Capacity gal. (l ): 12.5 (47.31)
Fuel Requirement: Unleaded Gasoline (87 Octane or higher)

Drive Train

Model: Hydro-Gear ZT-3200
Displacement (Pump/Motor) cc: 10/16

PTO Type

Clutch ft./lb.: 200

Electrical

Charging System amp: 16

Tire Size

Front: 13 x 6.5-6
Rear: 23 x 9.5-12

Traveling Speeds

Forward mph (km/h): 9 (14.48)
Parking Brake: Internal Integrated in Axle

Dimensions

Overall Length in. (mm): 80.7 (2,049.78)
Overall Width in. (mm): 60.7 (1,541.78)
Overall Height in. (mm): 71.5 (1,816.1)
Wheelbase in. (mm): 48.5 (1,231.9)
Width (Tire to Tire) in. (mm): 50.3 (1,277.62)
Approximate Curb Weight lb. (kg): 922 (418.21)

Mower Deck

Mower Deck Type: Fabricated
Lift Mechanism: Foot Pedal
Deck Steel Thickness: 10-gauge with 7-gauge at edge area
Anti-Scalp Ball Rollers: 5 (4 front, 1 rear)
Cutting Width of Mower in. (mm): 48 (1,219.2)
Blades: Notched (Opt. Serrated)
Cutting Height in. (mm): 1.5-5 (38.1-127)
Discharge Chute: Side (Molded Rubber)
Deck Height Adjustment: Dial Type

Seat

Suspension: Standard (1.5 Inch Suspension)
Sliding Adjustment: Standard
Arm Rest: Standard
Seat Belt: Standard

Standard/Optional

Foldable ROPS: Standard
Head Light: Optional
Power Socket: Standard

ZXC54

Model: ZXC54

Engine

Type: Briggs & Stratton Professional Series™
Engine Gross hp (kW): 25 (18.64)
Displacement cu. in. (cc): 44.18 (724)
Choke: Manual
Fuel Tank Capacity gal. (l ): 12.5 (47.31)
Fuel Requirement: Unleaded Gasoline (87 Octane or higher)

Drive Train

Model: Hydro-Gear ZT-3200
Displacement (Pump/Motor) cc: 10/16

PTO Type

Clutch ft./lb.: 200

Electrical

Charging System amp: 16

Tire Size

Front: 13 x 5-6
Rear: 23 x 9.5-12

Traveling Speeds

Forward mph (km/h): 9 (14.48)
Parking Brake: Internal Integrated in Axle

Dimensions

Overall Length in. (mm): 80.7 (2,049.78)
Overall Width in. (mm): 67.3 (1,709.42)
Overall Height in. (mm): 71.5 (1,816.1)
Wheelbase in. (mm): 48.5 (1,231.9)
Width (Tire to Tire) in. (mm): 50.3 (1,277.62)
Approximate Curb Weight lb. (kg): 939 (425.92)

Mower Deck

Mower Deck Type: Fabricated
Lift Mechanism: Foot Pedal
Deck Steel Thickness: 10-gauge with 7-gauge at edge area
Anti-Scalp Ball Rollers: 6 (4 front, 2 rear)
Cutting Width of Mower in. (mm): 54 (1,371.6)
Blades: Notched (Opt. Serrated)
Cutting Height in. (mm): 1.5-5 (38.1-127)
Discharge Chute: Side (Molded Rubber)
Deck Height Adjustment: Dial Type

Seat

Suspension: Standard (1.5 Inch Suspension)
Sliding Adjustment: Standard
Arm Rest: Standard
Seat Belt: Standard

Standard/Optional

Foldable ROPS: Standard
Head Light: Optional
Power Socket: Standard

ZXC60

Model: ZXC60

Engine

Type: Briggs & Stratton Professional Series™
Engine Gross hp (kW): 27 (20.13)
Displacement cu. in. (cc): 49.42 (810)
Choke: Manual
Fuel Tank Capacity gal. (l ): 12.5 (47.31)
Fuel Requirement: Unleaded Gasoline (87 Octane or higher)

Drive Train

Model: Hydro-Gear ZT-3400
Displacement (Pump/Motor) cc: 12/16

PTO Type

Clutch ft./lb.: 200

Electrical

Charging System amp: 16

Tire Size

Front: 13 x 6.5-6
Rear: 23 x 10.5-12

Traveling Speeds

Forward mph (km/h): 10 (16.1)
Parking Brake: Internal Integrated in Axle

Dimensions

Overall Length in. (mm): 81.7 (2,075.18)
Overall Width in. (mm): 72.6 (1,844.04)
Overall Height in. (mm): 71.5 (1,816.1)
Wheelbase in. (mm): 49.5 (1,257.3)
Width (Tire to Tire) in. (mm): 51.3 (1,303.02)
Approximate Curb Weight lb. (kg): 950 (430.91)

Mower Deck

Mower Deck Type: Fabricated
Lift Mechanism: Foot Pedal
Deck Steel Thickness: 10-gauge with 7-gauge at edge area
Anti-Scalp Ball Rollers: 8 (4 front, 4 rear)
Cutting Width of Mower in. (mm): 60 (1,524)
Blades: Notched (Opt. Serrated)
Cutting Height in. (mm): 1.5-5 (38.1-127)
Discharge Chute: Side (Molded Rubber)
Deck Height Adjustment: Dial Type

Seat

Suspension: Standard (1.5 Inch Suspension)
Sliding Adjustment: Standard
Arm Rest: Standard
Seat Belt: Standard

Standard/Optional

Foldable ROPS: Standard
Head Light: Optional
Power Socket: Standard

Additional information

Additional Features

Integrated High Capacity Fuel Tanks
The large 12.5 gallon twin fuel tanks will keep you mowing with less downtime for refueling.

Rear Guard
Steel rear guard to protect major components with convenient integrated tie-downs.

12 Volt Charging Adapter
Convenient on board charging for phone and other devices on all models.

Operator Platform with Access Panel
The wide platform designed for operator comfort and convenience allows for easy service and cleaning.

Dial-Type Adjustable Deck System
Ergonomically designed and simple to use adjustable deck system allows for precise cutting heights.

Digital Control Panel and Keyless Start
Easy to use push button keyless start and diagnostics panel.

Engines
The KIOTI ZXC Series is equipped with Briggs and Stratton Professional Series™ gasoline engines ranging from 23 to 27 HP. The KIOTI ZXC SE Series is equipped with Kohler Command Pro® engines raning from 22.5 to 25 HP.

Premium Adjustable Seat Suspension
1.5 inch adjustable suspension seat is standard on ZXC models. 3 inch suspension seat with high back on ZXC SE models.

Heavy Gauge Fabricated Deck
10 Guage fabricated deck in 48, 54 and 60 inch sizes with reinforced 7 gauge edge for long lasting durability.
