ngine: 4F243T
Engine Gross Power: 666 hp ( 49.2 kW)
Rated Speed: 2,600 rpm
No. of Cylinders: 4
Fuel Type: Diesel
Aspiration: Turbo Charged
Displacement: 148.6 cu.in. (2,435 cc)
Fuel Tank Capacity: 22.5 gal. (85 L)
Transmission Type: Syncro Shuttle / Power Shuttle with optional Creeper
Shuttle: Synchronized
Main Gear: Synchronized
No. of Travel Speeds – Forward / Reverse: 12F/12R – w/ creeper 24F / 24R
Min. Travel Speed of Forward with Ag @ Engine rated speed: w/creeper .11 mph (.17 km/h)
Max. Travel Speed of Forward with Ag @ Engine rated speed: 23.53 mph (37.86 km/h)
PTO Type Trans: Independent
PTO Power: 57.6 hp (43 kW)
Rear PTO Speeds (1st): 540 rpm / 540E rpm
Brakes: Wet Multi Disc
Clutch: Wet Disc
Length with 3-point hitch: 145 in. (3,685 mm)
Width: 70.9 in. (1,800 mm)
Height from Top of Cab: 103.6 in. (2630 mm)
Wheelbase: 82.7 in. (2,100 mm)
Ground Clearance: 16.5 in. (420 mm)
Front Tread Ag Tires – Min: 57.7 in. (1,465 mm)
Rear Tread Ag Tires – Min: 55.7 in. (1,465 mm)
Turning Radius w/ Brake: 10.2 ft. (3.1 m)
Pump: Gear
Pump Capacity (Max. Flow Rate): 17.9 gpm (67.6 L/min)
3-Point Hitch Standard Category: Category II
Lift Capacity, 24″ aft of hitch: 3,594 lbs. (1,630 kg)
Control Type: Position, Draft and Mixed
Weight with Ag Tires: 5,732 lbs. (2,600 kg)

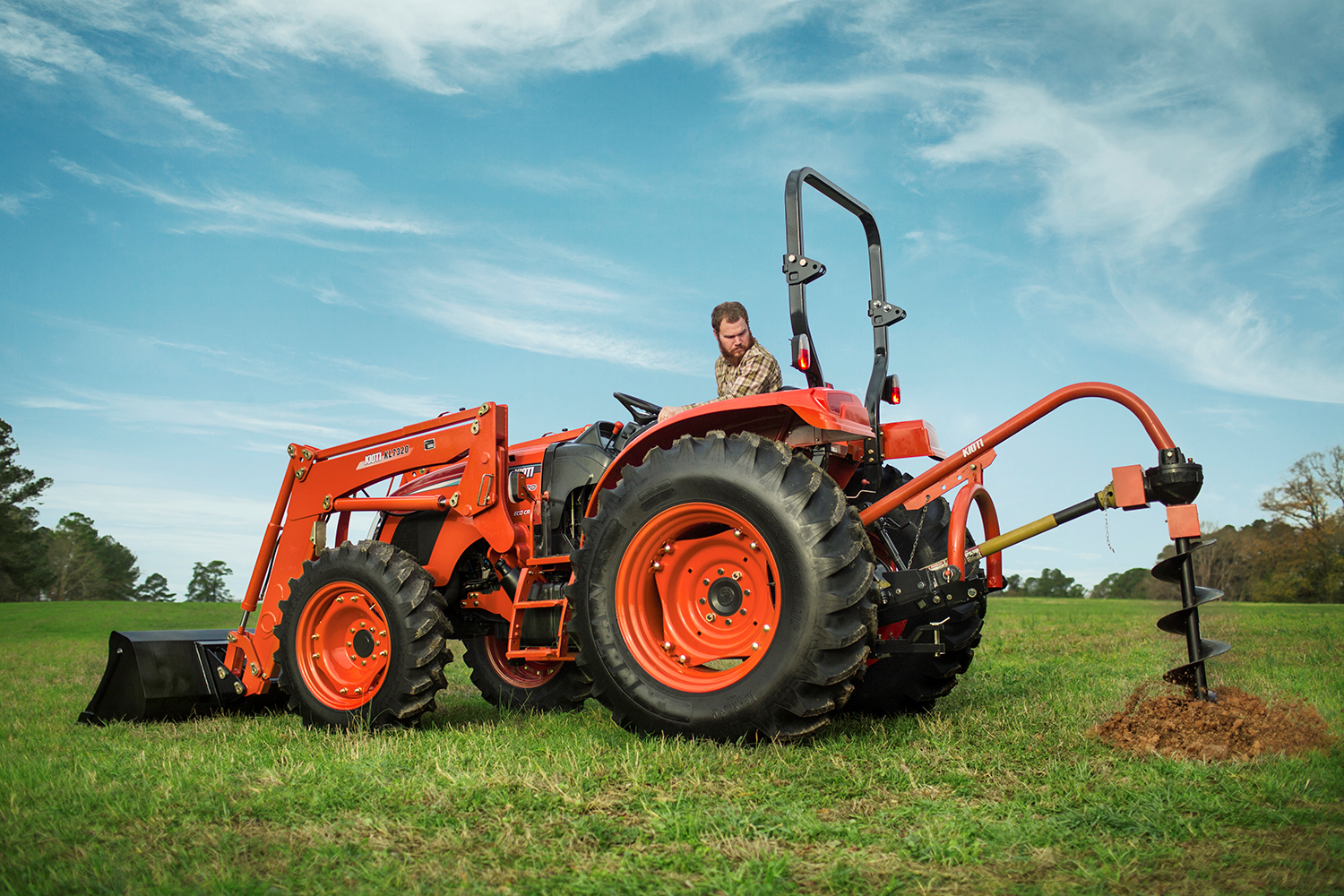

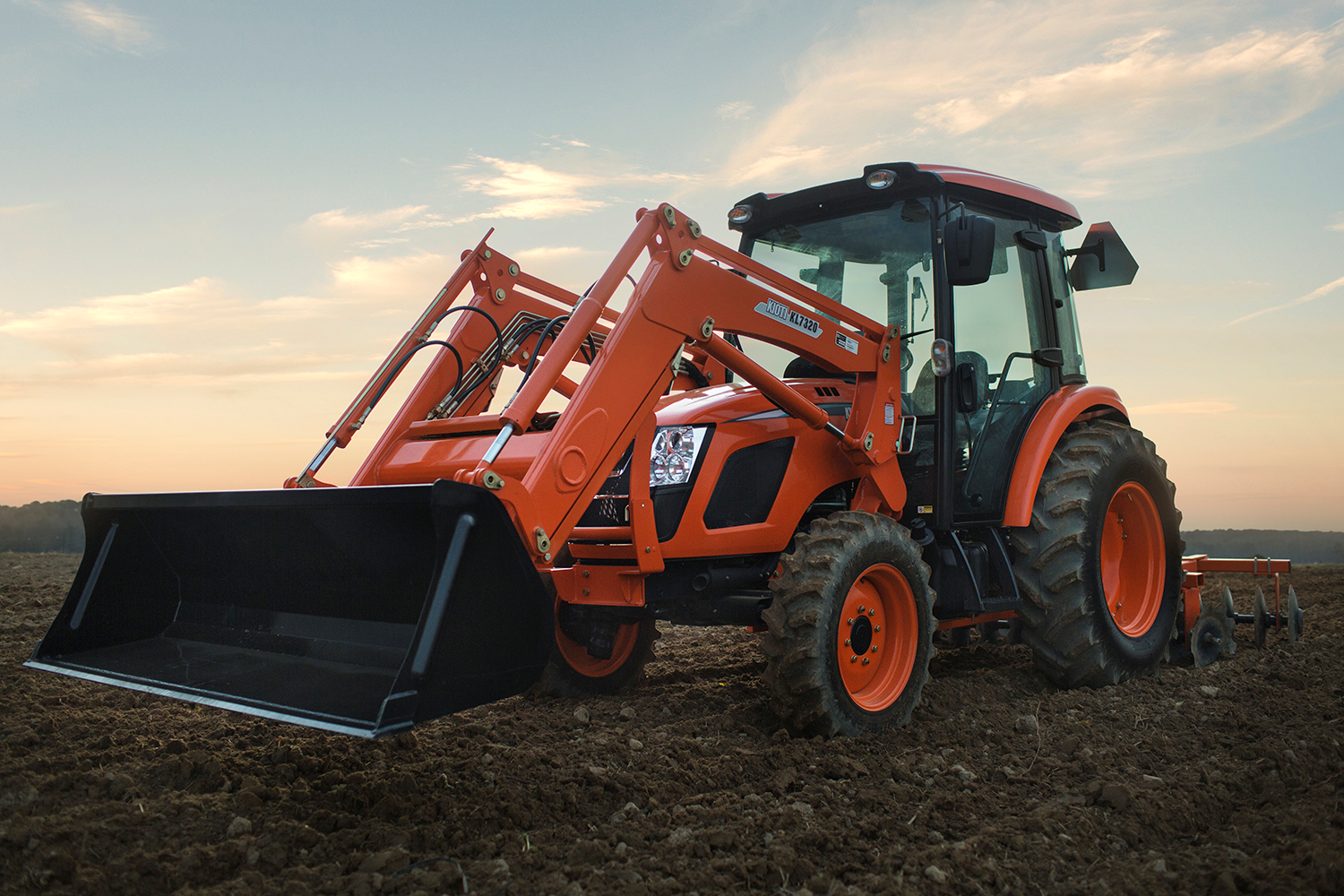

Kioti – RX6620, RX6620C, RX6620P, RX6620PC
Eco-Friendly Diesel Engine – The new Common Rail Diesel Engine (CRDI) improves fuel efficiency over 20% while reducing noise levels. With this Eco-friendly Tier 4 engine, the RX Series offers the operator a quiet work environment with powerful performance.
