Maximum Lift Height to Pivot Pin: 133.9 in. (3,401 mm)
Clearance with Attachment Level: 123 in. (3,124 mm)
Clearance with Attachment Dumped: 102.3 in. (2,598 mm)
Reach at Maximum Height: 20.4 in. (518 mm)
Maximum Dump Angle: 47˚
Reach with Attachment on Ground: 80.4 in. (2,042 mm)
Maximum Rollback Angle: 54˚
Digging Depth Below Grade: 6.5 in. (165 mm)
Overall Height in Carry Position: 69.3 in. (1,760 mm)
Depth of Attachment (to back of inner shell): 23.3 in. (592 mm)
Height of Attachment: 22.9 in. (582 mm)
Length of Attachment (to pivot pin): 33 in. (838 mm)
Lift Capacity to Full Height at Pivot Pins: 3,384 lbs. (1,535 kg)
Breakout Force at Pivot Pin: 5,359 lbs. (2,431 kg)
Lift Cylinder: I.D ø70mm X ROD 40mm
Bucket Cylinder: I.D ø70mm X ROD 35mm
Bucket Size: 82 in. (2,083 mm)
Bucket Weight: 428 lbs.
Approx. Weight (without Bucket): 1,468 lbs.
Bucket Capacity (Heaped): 21.2 f³
Rated Flow: 41.6 L/min
Relief Valve Setting: 185 kg/cm² (66 hp) / 195 kg/cm² (73 hp)
Raise Boom (2,300 rpm): 6.3 seconds
Lower Boom (2,300 rpm): 4.2 seconds
Dump Bucket (2,300 rpm): 4.7 seconds
Retract Bucket (2,300 rpm): 3.5 seconds

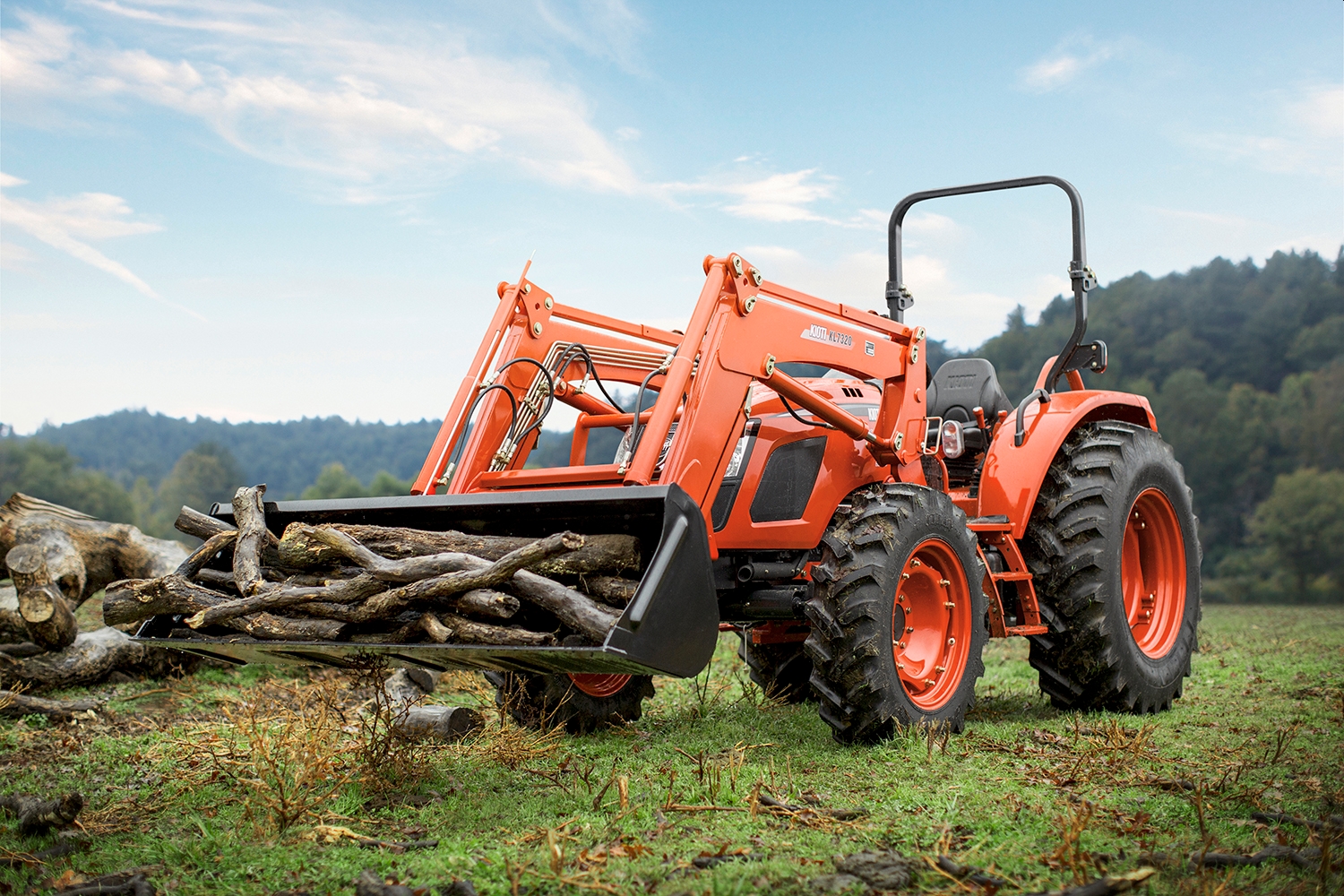

Kioti – KL7320 Self-Leveling
Fits the RX6620/7320 models.
The KIOTI KL7320 front end loader is specifically designed for the RX6620/7320 model tractors, providing efficient performance with single lever joystick control. The KIOTI loader, with a built-in parking stand, is designed to be quickly and easily attached and detached. KL Series loaders utilize the tractor’s hydraulic system, feature single-lever control with float and come with a bucket level indicator.
Low profile design maximizes operator’s visibility.
Designed to be quickly and easily attached and detached.
A built-in parking stand on the front end loader provides quick and easy connection.
Mid-mount style frame for engine accessibility.
A bucket level indicator is standard.
Color complements KIOTI tractor.
