Maximum Lift Height to pivot pin: 87.8 in. (2,230 mm)
Clearance with Attachment Level: 84.3 in. (2,141 mm)
Clearance with Attachment Dumped: 67.2 in. (1,706 mm)
Reach at Maximum Height: 31.5 in. (800 mm)
Maximum Dump Angle: 53˚
Reach with Bucket on Ground: 59 in. (1,498 mm)
Maximum Rollback Angle: 33˚
Digging Depth Below Grade: 3.9 in. (99 mm)
Overall Height in Carry Position: 40 in. (1,016 mm)
Depth of Attachment (to back of inner shell): 19.9 in. (505 mm)
Height of Attachment: 18.2 in. (411 mm)
Length of Attachment (to pivot pin): 24.9 in. (632 mm)
Lift Capacity to Full Height at Pivot Pins: 1,092 lbs. (495 kg)
Breakout Rollback Force at Pivot Point: 1,843 lbs. (836 kg)
Relief Valve Setting (Loader Control Valve): 2,275 psi
Rated Flow (Tractor system): 7.66 gpm (29 L/min)
Bucket Size: 50 in. (1,270 mm)
Weight (with Bucket): 605 lbs. (274 kg)
Raise Boom (seconds): 4.3 (1,500 rpm) / 3.2 (2,000 rpm) / 2.5 (2,600 rpm)
Lower Boom (seconds): 2.3 (1,500 rpm) / 1.7 (2,000 rpm) / 1.5 (2,600 rpm)
Dump Bucket (seconds): 5.5 (1,500 rpm) / 4.4 (2,000 rpm) / 3.5 (2,600 rpm)
Retract Bucket (seconds): 3.4 (1,500 rpm) / 2.5 (2,000 rpm) / 1.5 (2,600 rpm)

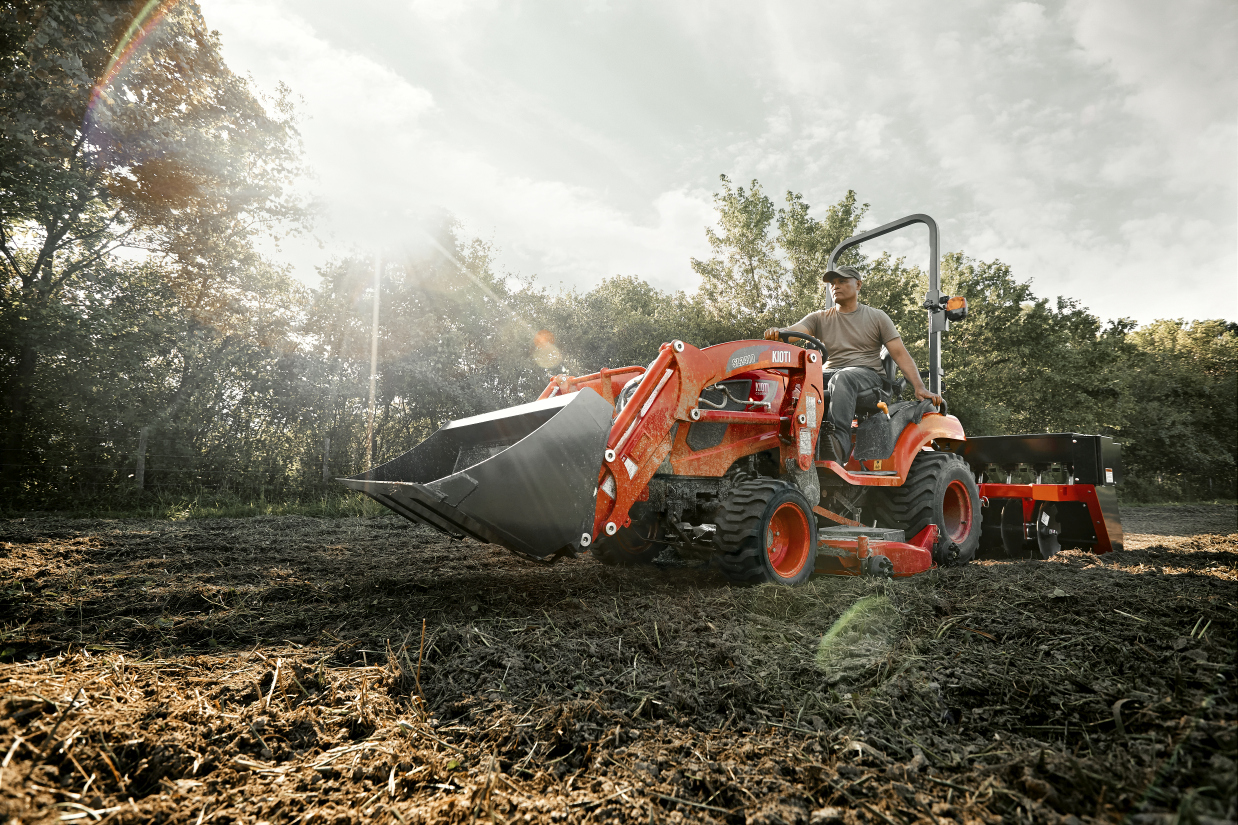

Kioti – KL2510
Fits the CK2510. The KIOTI KL2510 front end loader is specifically designed for the CK2510 tractors, providing efficient performance with single lever joystick control. The KIOTI loader, with a built-in parking stand, is designed to be quickly and easily attached and detached. KL Series loaders utilize the tractor’s hydraulic system, feature single-lever control with float and come with a bucket level indicator. *Specifications may vary with tractor model, front axle configurations, tire size option and type of attachment and are subject to change without notification.
Low profile design maximizes operator’s visibility.
Designed to be quickly and easily attached and detached.
A built-in parking stand on the front end loader provides quick and easy connection.
Mid-mount style frame for engine accessibility.
A bucket level indicator is standard.
Color compliments KIOTI tractor.
