Engine Model: 3C100LFU-U3
Front Tire Size (HD, Turf, ATV): 25×10-12, 26×10.5-12, 25×10-12
Rear Tire Size (HD, Turf, ATV): 25×10 -12, 26×10.5 -12, 25×11-12
Rear Hitch Receiver: Standard
Hydraulic Utility Valve: Optional
Speedometer: Standard
Hydraulic Bed Lift: Optional
Body Color: K9 Red or Green
Front Guard: Standard
Dump Box Actuation: Manual Dump Box Actuation with Gas Spring Assist
Seat Capacity: 3
Bed Capacity: 1,102 lbs. (500 kg)
Cargo Bed L x W x H: 43.7 x 58.2 x 11.5 in. (1,110 x 1,480 x 293 mm)
Turning Radius: 15.1 ft. (4.6 m)
Payload Capacity: 1,750 lbs. (725 kg)
Towing Capacity: 1,300 lbs. (590 kg)
Ground clearance: 12.5 in. (318 mm)
Weight: 2,215 lbs. (930 kg)
Wheelbase: 85.8 in. (2,180 mm)
Max Wheel Tread (Rear): 49.8 in. (1,264 mm)
Max Wheel Tread (Front): 49.7 in. (1,262 mm)
L x W x H: 119.8 in. x 65.6 in. x 78.4 in.
Steering: Hydraulic Power
Rear Suspension: Independent, Double A-Arm (Wishbone Type)
Front Suspension: Independent, Double A-Arm (Wishbone Type)
Brake: Front/Rear Hydraulic Disc
Engine Type: 4-Cycle Diesel, 3 Cyl., In-line Vertical, Water-Cooled
Engine Gross: 24 hp (17.89 kW)
Engine Displacement: 61.5 cu. in. (1,007 cc)
RPM: 3,200 rpm
Fuel Tank Capacity: 9.8 gal.
Drive Train: Belt CVT
Gear Range: Low, High, Neutral, Reverse
Ground Speed: 0-31 mph (0-50 km/h)

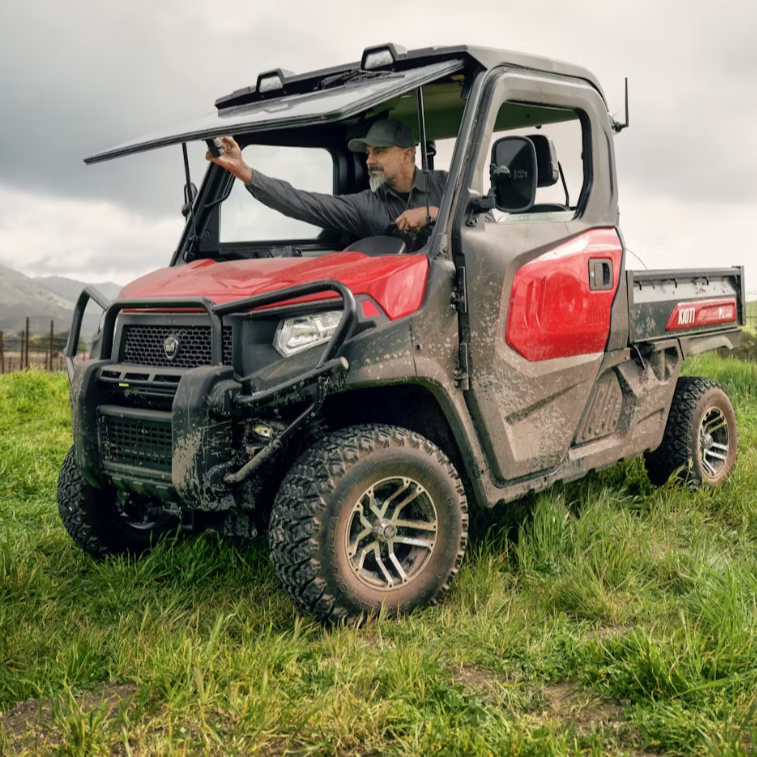

Kioti K9 Cab 2400 UTV
With a weatherproof factory cab, the K9 2400 Cab lets you conquer any terrain, any season. No more battling rain, wind, or sun. Stay comfortable in the cab with heat and A/C. With the widest cargo bed in its class and a 1,102 lbs. (500 kg) load capacity, the K9 provides excellent payload capabilities. Add the optional hydraulic dump kit and you can easily place any load where you want it. With the 2-inch rear hitch receiver you can attach and pull trailers as well as implements that are receiver equipped. Rear hitch comes standard. The heavy-duty steel brush guard offers protection for the headlights, radiator and front differential from rocks, tough brush and other debris on the trail.
Additional information
| Optional Equipment | Fog Lamp Kit |
|---|
