Engine Model: 3C100LFU-U2
Front Tire Size (HD, Turf, ATV): 25×10-12, 26×10.5-12, 25×10-12
Rear Tire Size (HD, Turf, ATV): 25×10 -12, 26×10.5 -12, 25×11-12
Rear Hitch Receiver: Standard
Hydraulic Utility Valve: Optional
Speedometer: Standard
Hydraulic Bed Lift: Optional
Body Color: K9 Red or Green
Front Guard: Standard
Dump Box Actuation: Manual Dump Box Actuation with Gas Spring Assist
Seat Capacity: 3
Bed Capacity: 1,102 lbs. (500 kg)
Cargo Bed L x W x H: 43.7 x 58.2 x 11.5 in. (1,110 x 1,480 x 293 mm)
Turning Radius: 14.1 ft. (4.3 m)
Payload Capacity: 1,598 lbs. (725 kg)
Towing Capacity: 1,300 lbs. (590 kg)
Ground clearance: 12.5 in. (318 mm)
Weight: 2,050 lbs. (930 kg)
Wheelbase: 85.8 in. (2,180 mm)
Max Wheel Tread (Rear): 49.8 in. (1,264 mm)
Max Wheel Tread (Front): 49.7 in. (1,262 mm)
L x W x H: 119.8 in. x 62.5 in. x 76.7 in.
Steering: Hydraulic Power
Rear Suspension: Independent, Double A-Arm (Wishbone Type)
Front Suspension: Independent, Double A-Arm (Wishbone Type)
Brake: Front/Rear Hydraulic Disc
Engine Type: 4-Cycle Diesel, 3 Cyl., In-line Vertical, Water-Cooled
Engine Gross: 24 hp (17.89 kW)
Engine Displacement: 61.45 cu. in. (1,007 cc)
RPM: 3,000 rpm
Fuel Tank Capacity: 9.7 gal.
Drive Train: Belt CVT
Gear Range: Low, High, Neutral, Reverse
Ground Speed: 0-31 mph (0-50 km/h)

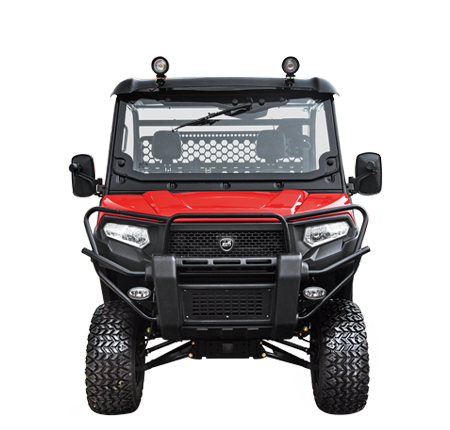

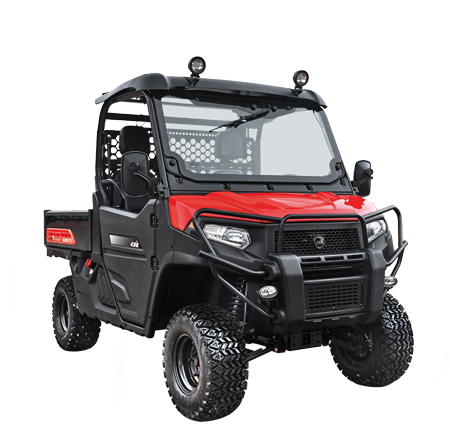

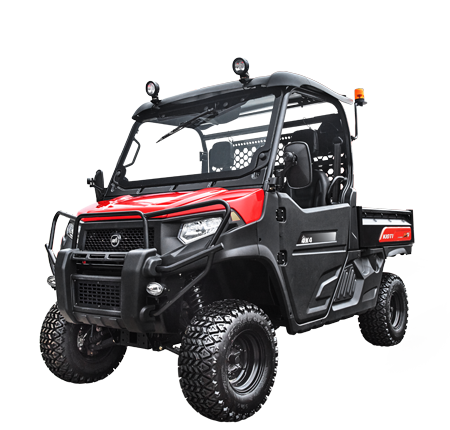

Kioti K9 2400 UTV
The new KIOTI K9 UTV. A Landowners Best Friend. Fully-Featured, Tough, and Reliable Companion. The K9 offers contemporary styling, enhanced ergonomics and an abundance of storage. With a 24 horsepower, 3 cylinder, in-line vertical, water-cooled Daedong diesel engine with a ground speed up to 31 mph, landowners will rejoice.
Additional information
| Optional Equipment | Fog Lamp Kit |
|---|
