Weight: 1,554 lb (705 kg.f)
Control Type: Position
Lift Capacity: 700 lbs (318 kg)
Standard Category: Category 1
Power Steering Pump Capacity: 6.5 gpm (24.6 lpm)
Total Pump Flow: 6.97 gpm (24.6 lpm)
Front Tread: 44.6 in (1,150 mm)
Rear Tread: 46 in (1,185 mm)
Ground Clearance: 6.4 in (162 mm)
Wheelbase: 55.1 in (1,400 mm)
Height: 88 in (2,226 mm)
Width: 45.9 in (1,185 mm)
Length: 99.3 in (2,523 mm)
Brakes: Wet Multi Disc
Mid PTO Speeds: 2200 rpm
Rear PTO Speeds: 540 rpm
PTO Power: 18.5 hp
PTO Type Trans: Independent
Maximum Speed: 9.57 mph (16.6 km/h)
Minimum Speed: 0 mph
Speeds: Infinite / 2 Range
Transmission Type: HST
Fuel Tank Capacity: 6.7 gal (25.5 liters)
Displacement: 61.5 cu in (1131 cc)
Cylinders: 3
Fuel Type: Diesel w/ Pressurized Radiator
Rated Speed: 3,200rpm
Engine Gross: 24.5 hp (15.6KW)
Engine Model: 3C100LWH-U2

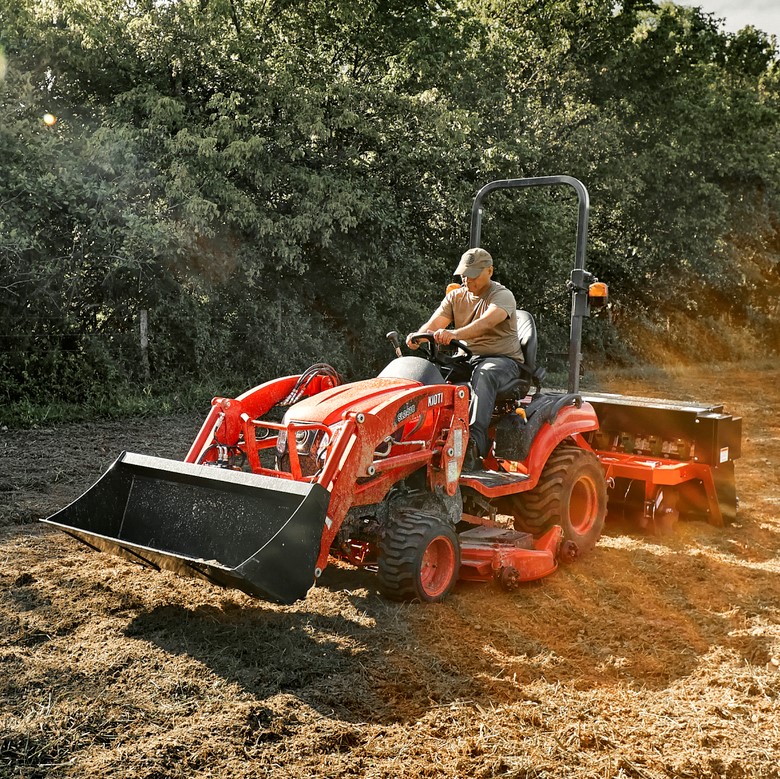

Kioti CS2520 Tractor
KIOTI CS20 SERIES – EASY TO OPERATE, RUGGED AND POWERFUL!
Distinctive Hood Design
The streamlined hood design improves the visibility for the operator. A vertical opening hood allows for easy access to the air filter, fluid service and inspection locations fuse box and electrical components.
Illuminated Dashboard
The dashboard illuminates when the engine is started. The digital gauge package includes tachometer, fuel and temperature gauges along with low fuel warning lamp.
Included Features:
Twin HST pedals, Ergonomic operator station, front wheel drive, differential lock, foldable ROPS, Mid and Rear PTO, Electric engaged hydraulic PTO, 12V plug and USB port. and toolbox.
