Engine Model: 3F-TH4-U
Weight with Ag Tires with Cab: 3,307 lb (1,500 kg)
3-Point Hitch Standard Category (Optional Category): 1,631 lb. (740 kg)
Lift Capacity, 24″ aft of hitch, lb(kg): 1,631 lb. (740 kg)
Main Pump Capacity: 11.7 gpm (44.4 L/min)
Turning Radius with Brake: 8 ft. (2.4 m)
Ground Clearance: 13.4 in. (340 mm)
Wheelbase: 65.7 in. (1,670 mm)
Height from Top of Cab: 91.7 in. (2,330 mm)
Width: 54.5 in. (1,385 mm)
Length with 3-point hitch: 120.9 in. (3,070 mm)
Clutch: Dry Single Stage
Brakes: Wet Multi Disc
Mid PTO Speeds: 2,000 rpm (optional)
Rear PTO Speeds(1st): 540
PTO Power: 31.9 hp (23.8 kw)
PTO Type Trans: Live
Max. Travel Speed of Forward with Ag1 @ Engine rated speed: 14.86 mph (23.91 km/h)
Min. Travel Speed of Forward with Ag1 @ Engine rated speed: 0 mph
No. of Travel Speed Forward / Reverse: Infinite
Pre-heating System: Glow Plug
Transmission Type: HST
Fuel Tank Capacity: 9 gal. (34 L)
Displacement: 111.4 cu. in. (1,826 cc)
Aspiration: Natural
Fuel Type: Diesel
No. of Cylinder: 3
Engine Gross Power: 39.6 hp (29.5 kw)
Rated Speed: 2,600 rpm

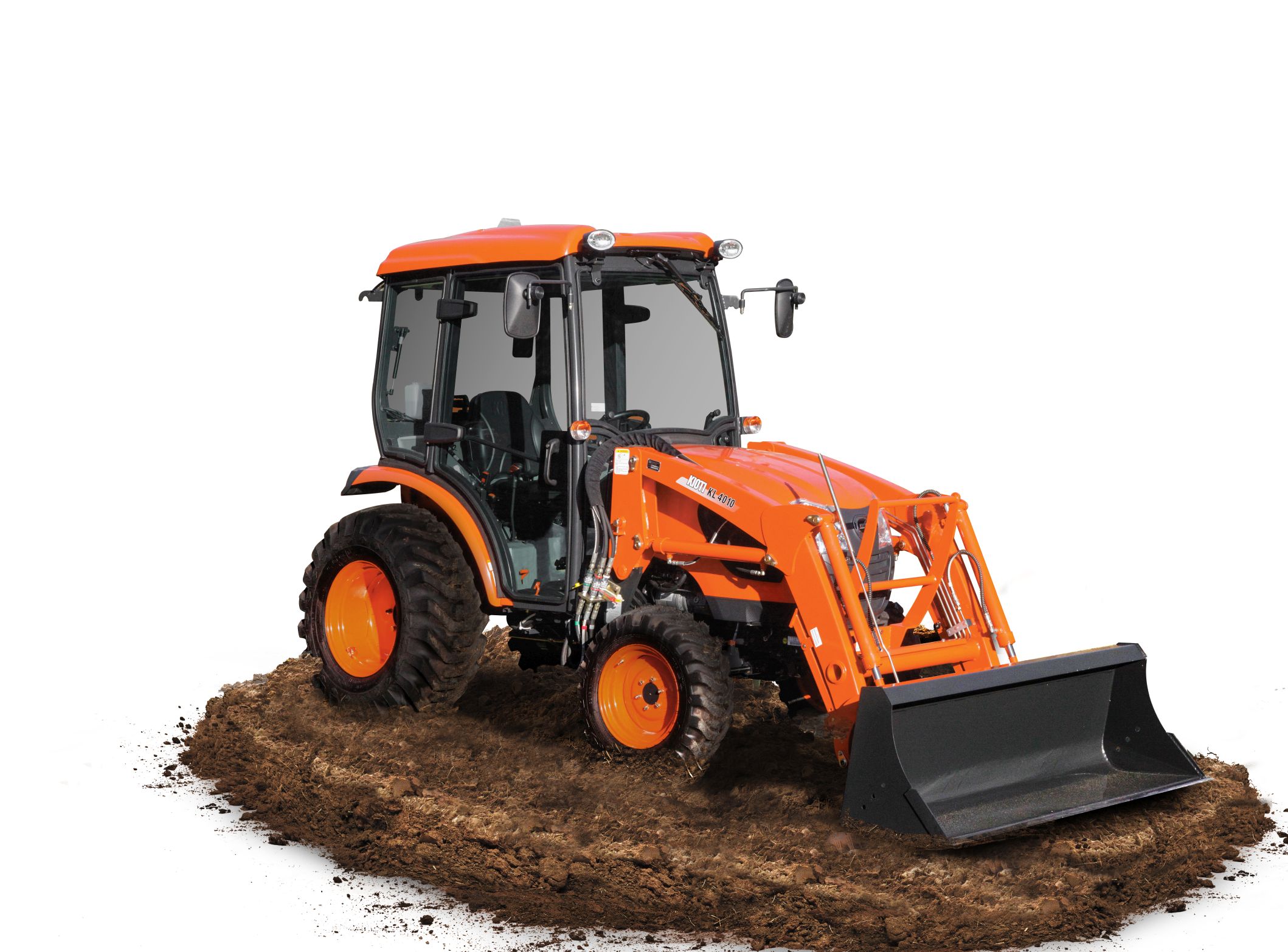

Kioti – CK4020SEHC
Related products
-
Kioti SL Series Skid Loader
KIOTI compact skid steers are built for professionals who need a machine to be as tough, dependable and durable as they are and need a machine to match that resolve. KIOTI’s compact skid steers are tailored to meet those ambitions. The SL750 keeps comfort top of mind and ensures the toughest days don’t have to feel that way. As operators continually push the limits of what compact equipment can accomplish, tackling bigger and more ambitious jobs, they expect their equipment to pave the way. KIOTI compact skid steers are designed to lift, push, and power their way through those rigorous demands, helping them accomplish more.Read more -

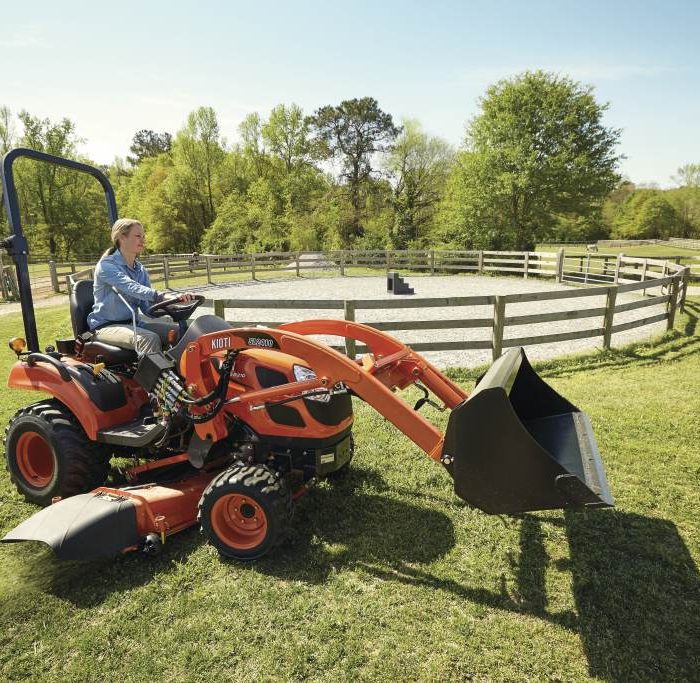

Kioti – CS2510
KIOTI CS SERIES - EASY TO OPERATE, RUGGED AND POWERFUL! Distinctive Hood Design The streamlined hood design improves the visibility for the operator. A vertical opening hood allows for easy access to the air filter, fluid service and inspection locations for fuse box and electrical components.Read more -
Kioti – CK2620H
Diesel engine with Daedong ECO Technology The new 24.5 HP ECO friendly diesel engine provides powerful performance and improves fuel efficiency while reducing noise levels. High Capacity Hydraulic Pump The high capacity, efficient tandem hydraulic pump gives you smoother handling in heavy duty working conditions and helps to reduce operator fatigue.Read more -

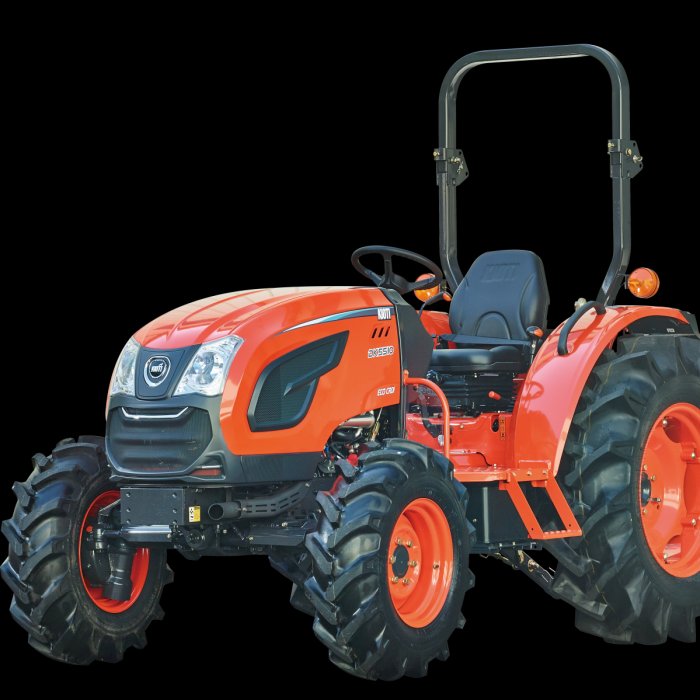

Kioti – DK4220SE HST
