Engine Model: 3F-TH4-U
Control Type: Position
Weight with Ag Tires with ROPS: 2,921 lbs. (1,325 kg)
Lift Capacity, 24″ aft of hitch, lb(kg): 1,631 lbs. (740 kg)
3-Point Hitch Standard Category (Optional Category): Category 1
Total Pump Flow: 11.7 gpm (44.4 L/min)
Turning Radius with Brake: 8 ft. (2.4 m)
Rear Tread Ag Tires – Min: 47.6 in. (1,210 mm)
Front Tread Ag Tires – Min: 48.2 in (1,225 mm)
Ground Clearance: 13.4 in. (340 mm)
Wheelbase: 65.7 in. (1,670 mm)
Height from Top of ROPS: 99.2 in. (2,520 mm)
Width: 54.5 in. (1,385 mm)
Length with 3-point hitch: 120.9 in. (3,070 mm)
Clutch: Dry Single Stage
Brakes: Wet Multi Disc
Mid PTO Speeds: 2,000 rpm (Optional)
Rear PTO Speeds(1st): 540 rpm
PTO Power: 33.5 hp (25 kW)
PTO Type Trans: Independent
Max. Travel Speed of Forward with Ag1 @ Engine rated speed: 15.4 mph (24.7 km/h)
Min. Travel Speed of Forward with Ag1 @ Engine rated speed: 0 mph (0 km/h)
No. of Travel Speed Forward / Reverse: 3 Range
Engine Gross Power: 39.6 hp (29.5 kW)
Rated Speed: 2,600 rpm
No. of Cylinder: 3
Fuel Type: Diesel
Displacement: 111.4 cu. in. (1,826 cc)
Fuel Tank Capacity: 9 gal. (34 L)
Transmission Type: Hydrostatic

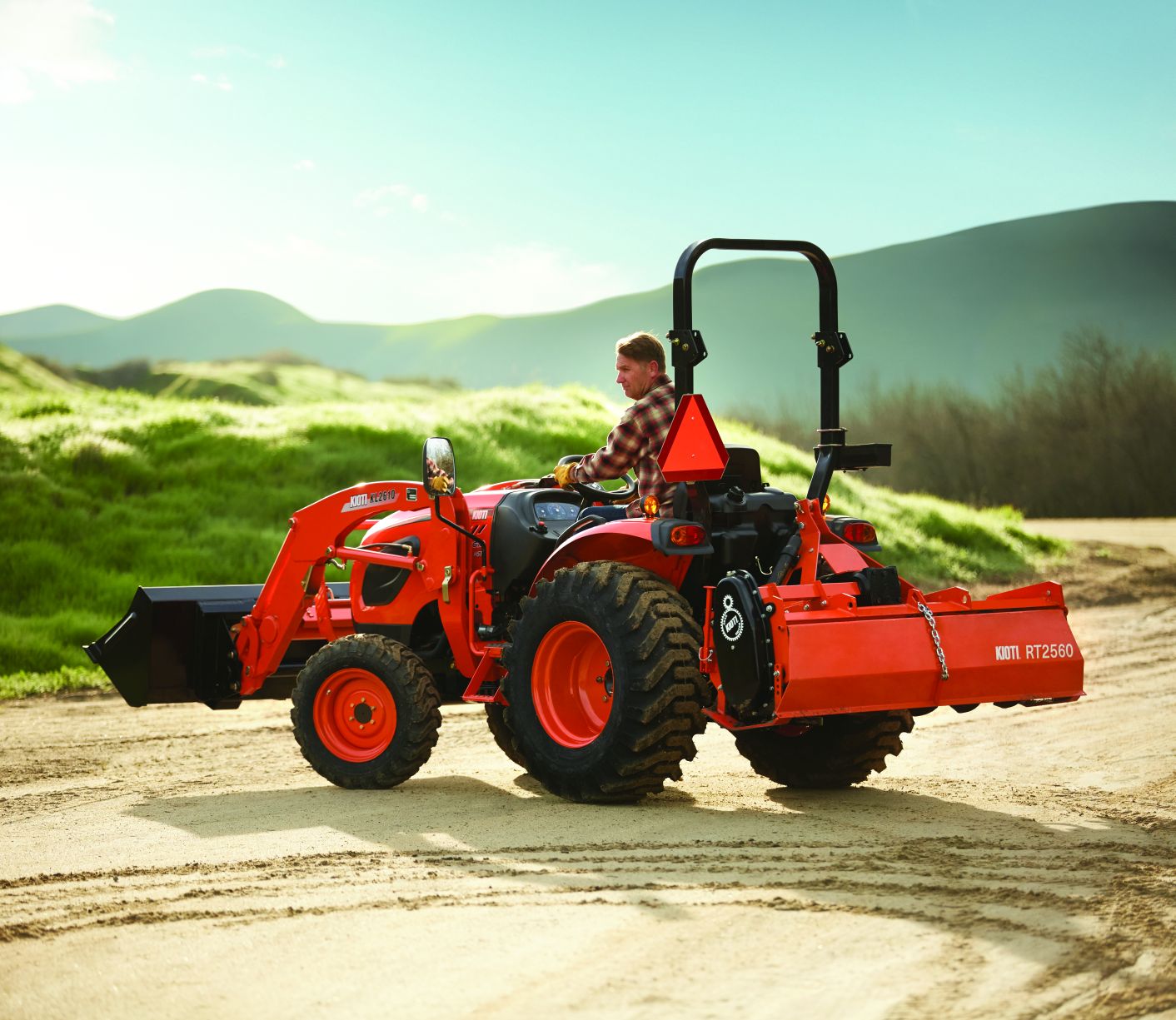

Kioti – CK4020SEH
Diesel engine with Daedong ECO Technology
The new 39.6 hp (29.5 kW) ECO-friendly diesel engine provides powerful performance and improves fuel efficiency while reducing noise levels.
Power Steering
Responsive, powerful and comfortable steering reduces operator fatigue. The power steering system is robustly designed for maneuvering in soft soil and for front loader operation.
